This notebook was created by Sergey Tomin (sergey.tomin@desy.de). June 2025.

generate_parray

The generate_parray function is a versatile tool for creating a ParticleArray object, which represents a collection of particles. This is essential for initializing beam distributions for simulations, analysis, or theoretical studies within OCELOT. It allows for specification of various particle distribution parameters, defaulting to a 6D Gaussian distribution, but also supporting other standard shapes and user-defined custom longitudinal profiles.

---

Synopsis

ocelot.cpbd.beam.generate_parray(
    sigma_x   = 1e-4,
    sigma_px  = 2e-5,
    sigma_y   = None,
    sigma_py  = None,
    sigma_tau = 1e-3,
    sigma_p   = 1e-4,
    chirp     = 0.01,
    charge    = 5e-9,
    nparticles= 200_000,
    energy    = 0.13,
    tau_trunc = None,
    tws       = None,
    shape     = "gauss"
) -> ParticleArray

Parameters

Parameter	Type	Default	Description
sigma_x	float	1e-4	RMS beam size in the horizontal coordinate x (m).
sigma_px	float	2e-5	RMS beam divergence in horizontal canonical momentum px/p0 (unitless).
sigma_y	float or None	None	RMS beam size in the vertical coordinate y (m). Defaults to sigma_x if None (and tws is not provided).
sigma_py	float or None	None	RMS beam divergence in vertical canonical momentum py/p0 (unitless). Defaults to sigma_px if None (and tws is not provided).
sigma_tau	float	1e-3	RMS bunch length in the longitudinal coordinate tau = c*t (m). Note: tau > 0 is the head of the bunch. Used to scale predefined shapes ("gauss", "tri", "rect") and for chirp calculation.
sigma_p	float	1e-4	RMS relative energy deviation (E - E0) / p0c. Can be overridden if tws is provided and tws.pp is non-zero (see tws parameter).
chirp	float	0.01	Linear energy chirp (unitless). Applies a correlation: p_i_final = p_i_initial + chirp * tau_i / sigma_tau. Applied only if sigma_tau is not zero.
charge	float	5e-9	Total beam charge (Coulombs).
nparticles	int	200000	Number of macro-particles in the distribution.
energy	float	0.13	Reference beam energy (GeV), i.e., E0. Can be overridden if tws is provided and tws.E is non-zero.
tau_trunc	float or None	None	Truncation factor for the longitudinal Gaussian distribution (shape="gauss"). If None, defaults to 5. The distribution is generated in [-tau_trunc * sigma_tau, tau_trunc * sigma_tau]. For other shapes, truncation is defined by the shape's s-coordinate range.
tws	Twiss or None	None	Twiss parameters object. If a Twiss object is provided and its emit_x, emit_y, beta_x, beta_y, gamma_x, gamma_y attributes are all non-zero, it defines the transverse beam properties. This overrides sigma_x, sigma_px, sigma_y, sigma_py. The transverse distribution is then generated using np.random.multivariate_normal and further refined by beam_matching to precisely match the Twiss parameters. Additionally: - If tws.E is non-zero, it overrides the energy parameter. - If tws.pp is non-zero, sigma_p is set to sqrt(tws.pp). (pp is assumed to be sigma_p^2).
shape	str or [s, f(s)]	"gauss"	Longitudinal current profile shape. Particles are sampled using an inverted CDF method based on this profile. - Supported strings: "gauss", "tri" (triangular), "rect" (rectangular/flat-top). These use sigma_tau to define their extent. - Custom profile: [s, f(s)] where s is an array of longitudinal positions (m) and f(s) is the corresponding current/density.

---

Returns

• ParticleArray: An OCELOT ParticleArray object representing the generated particle distribution.

---

Example Usage

1. Using default values

This example generates a particle array with default parameters, resulting in a 6D Gaussian distribution.

from ocelot.cpbd.beam import generate_parray
parray = generate_parray()
print(parray)

initializing ocelot... ParticleArray: Ref. energy : 0.13 GeV Ave. energy : 0.13 GeV std(x) : 0.1 mm std(px) : 0.02 mrad std(y) : 0.1 mm std(py) : 0.02 mrad std(p) : 0.01 std(tau) : 0.999 mm Charge : 5.0 nC s pos : 0.0 m n particles : 200000

Twiss parameters of the generated distribution can be calculated:

Note: Expected output (actual values may vary slightly due to random sampling):

print(parray.get_twiss())

emit_x = 2.0047197807088e-09 emit_y = 2.0048157030825804e-09 emit_xn = 5.100041797972257e-07 emit_yn = 5.100285826150334e-07 beta_x = 4.994335333853261 beta_y = 4.986264209140136 alpha_x = -0.002012054559353829 alpha_y = 0.0028608621340389124 Dx = 0.0 Dy = 0.0 Dxp = 0.0 Dyp = 0.0 mux = 0.0 muy = 0.0 nu_x = 0.0 nu_y = 0.0 E = 0.13 s = 0.0

2. Generate ParticleArray from Twiss parameters

To generate a distribution that matches specific lattice Twiss parameters, use the tws argument.

It is generally recommended to provide a Twiss object with defined emittances — either geometric (emit_x, emit_y) or normalized (emit_xn, emit_yn). If using normalized emittances, make sure the beam energy (E) is correctly specified in the Twiss object, as it is essential for converting to geometric emittance internally.

When all relevant Twiss attributes (emit_x, emit_y, beta_x, beta_y, gamma_x, gamma_y) are non-zero, they take precedence in determining the transverse beam properties.

Additionally, the beam energy and sigma_p can be overridden via tws.E and tws.pp, respectively.

from ocelot.cpbd.beam import Twiss, generate_parray

# Define Twiss parameters
tws0 = Twiss(emit_xn=0.3e-6, emit_yn=0.7e-6, beta_x=10, alpha_x=-1, beta_y=7, alpha_y=1.3, E=0.5)
# If you want tws to define sigma_p, set tws0.pp, e.g., tws0.pp = (5e-4)**2

parray_from_tws = generate_parray(
    tws=tws0,
    charge=250e-12,
    nparticles=100_000,
    sigma_tau=5e-3,  # Longitudinal sigma_tau
    sigma_p=5e-4,    # Default sigma_p, overridden if tws0.pp is set
    shape="gauss",    # Longitudinal shape
    energy=1         # despite energy is define also here, it will be overrides by energy in Twiss object
)

print(f"Reference energy used: {parray_from_tws.E} GeV")
print(parray_from_tws.get_twiss())

    # [INFO] Twiss parameters have priority. sigma_{x, px, y, py} will be redefine

    Reference energy used: 0.5 GeV
    emit_x  = 3.0689589336837374e-10
    emit_y  = 7.15089446028782e-10
    emit_xn  = 3.002900327281652e-07
    emit_yn  = 6.996973168806738e-07
    beta_x  = 10.000184452346401
    beta_y  = 6.999384746018024
    alpha_x = -0.9998838045047547
    alpha_y = 1.299829019310836
    Dx      = 0.0
    Dy      = 0.0
    Dxp     = 0.0
    Dyp     = 0.0
    mux     = 0.0
    muy     = 0.0
    nu_x    = 0.0
    nu_y    = 0.0
    E       = 0.5
    s        = 0.0

3. Generate particle distribution with an arbitrary longitudinal shape

The longitudinal current profile can be a standard shape or a custom one defined by [tau, f(tau)].

import numpy as np
from ocelot.cpbd.beam import generate_parray
from ocelot.gui.accelerator import show_e_beam
import matplotlib.pyplot as plt

# Define an effective overall length for the custom shape
sigma_tau_ref = 10e-6

# Parameters for a custom shape (e.g., sum of Gaussians)
A1, A2, A3 = 0.5, 0.2, 1.0
mu1, mu2, mu3 = -0.77 * sigma_tau_ref, 3.7 * sigma_tau_ref, -0.63 * sigma_tau_ref
sigma1, sigma2, sigma3 = 0.72 * sigma_tau_ref, 0.92 * sigma_tau_ref, 0.3 * sigma_tau_ref

f_custom = lambda x_val: (A1 * np.exp(-(x_val - mu1)**2 / (2 * sigma1**2)) +
                          A2 * np.exp(-(x_val - mu2)**2 / (2 * sigma2**2)) +
                          A3 * np.exp(-(x_val - mu3)**2 / (2 * sigma3**2)))

tau_coords = np.linspace(-5 * sigma_tau_ref, 5 * sigma_tau_ref, num=300)
custom_profile = [tau_coords, f_custom(tau_coords)]

parray_custom = generate_parray(
    sigma_x=1e-4, sigma_px=2e-5,
    sigma_tau=sigma_tau_ref, # Used for chirp calc and as a general scale
    sigma_p=1e-4,
    chirp=0.01,
    charge=250e-12,
    nparticles=500_000,
    energy=0.13,
    shape=custom_profile
)

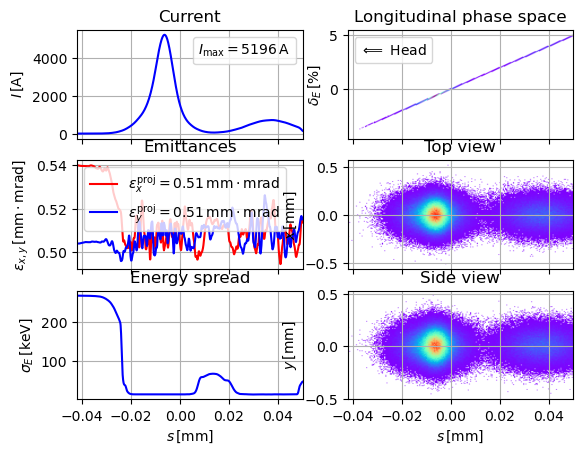

show_e_beam(parray_custom)
plt.show()

Notes

• Coordinate System & Definitions:
  • can be found in Ocelot Coordinate System
• Twiss Parameter Handling:
  • If a tws object is provided and its core transverse attributes (emit_x, emit_y, beta_x, beta_y, gamma_x, gamma_y) are all non-zero, it dictates the transverse particle distribution.
  • The energy parameter for the ParticleArray will be taken from tws.E if tws.E is non-zero.
  • The sigma_p for generating energy spread will be sqrt(tws.pp) if tws.pp is non-zero. (pp in the Twiss object is assumed to represent sigma_p_squared).
  • After initial generation from Twiss parameters, a beam_matching routine is internally called to further refine the particle coordinates, ensuring the resulting distribution's Twiss parameters (alpha, beta, emittance) and phase space orientation closely match the input tws object. This includes removing any spurious offsets.
• Chirp Application: The chirp introduces p_final = p_initial + chirp * tau / sigma_tau. sigma_tau here is the input parameter, acting as the scaling factor for the chirp, even if shape is custom.
• Longitudinal Shapes & sigma_tau:
  • For predefined shapes ("gauss", "tri", "rect"), the input sigma_tau defines their characteristic length and the range over which particles are generated.
  • For custom shape=[tau, f(tau)], the tau array directly defines the longitudinal extent. The input sigma_tau is primarily used for the chirp calculation. The actual RMS bunch length (std(tau)) will be determined by the custom profile itself.
  • Particles are sampled longitudinally according to the specified shape using an inverted Cumulative Distribution Function (CDF) method.

---
