This notebook was created by Sergey Tomin (sergey.tomin@desy.de). Source and license info is on GitHub. January 2018.

Tracking

As an example, we will use lattice file (converted to Ocelot format) of the European XFEL Injector.

This example will cover the following topics:

calculation of the linear optics for the European XFEL Injector.
Tracking of the particles in first and second order approximation without collective effects.

Coordinates

Coordinates in Ocelot are following:

\left (x, \quad x' = \frac{p_x}{p_0} \right), \qquad \left (y, \quad y' = \frac{p_y}{p_0} \right), \qquad \left (\tau = c\Delta t, \quad p = \frac{\Delta E}{p_0 c} \right)

Definitions

$\tau = c t - \frac{s}{\beta_0}$ : Longitudinal coordinate of the particle.
$s$ : Independent variable representing the distance along the beam line (equivalent to the path length of the reference particle).
$v_0$ and $p_0$ : Velocity and momentum of the reference particle, respectively.
$t$ : Time at which a particle reaches position $s$ along the beam line.
$\Delta E = E - E_0$ , where $E = \gamma m_0 c^2$ is the total energy of the particle.

See more in Ocelot Coordinate System

Requirements

injector_lattice.py - input file, the Injector lattice.
beam_130MeV.ast - input file, initial beam distribution in ASTRA format.

# the output of plotting commands is displayed inline within frontends,
# directly below the code cell that produced it
%matplotlib inline

# this python library provides generic shallow (copy) and
# deep copy (deepcopy) operations
from copy import deepcopy

import time

# import from Ocelot main modules and functions
from ocelot import *

# import from Ocelot graphical modules
from ocelot.gui.accelerator import *

# import injector lattice
from injector_lattice import *

    initializing ocelot...

If you want to see injector_lattice.py file you can run following command (lattice file is very large):

$ %load injector_lattice.py

The variable cell contains all the elements of the lattice in right order.

And again Ocelot will work with class MagneticLattice instead of simple sequence of element. So we have to run following command.

lat = MagneticLattice(cell, stop=None)

1. Design optics calculation for the EuXFEL Injector

For linear accelerators, the initial Twiss parameters and initial beam energy must be defined to compute the optics.

To calculate Twiss paramters along the beamline twiss is used

note

In the low-energy part of the accelerator, space charge effect can significantly influence the beam dynamics. For simplicity, this tutorial does not consider any collective effects.

# initialization of Twiss object
tws0 = Twiss()
# defining initial twiss parameters
tws0.beta_x = 29.171
tws0.beta_y = 29.171
tws0.alpha_x = 10.955
tws0.alpha_y = 10.955
# defining initial electron energy in GeV
tws0.E = 0.005

# calculate optical functions with initial twiss parameters
tws = twiss(lat, tws0)

# ploting twiss paramentrs.
plot_opt_func(lat, tws, top_plot=["Dx", "Dy"], fig_name="i1", legend=False)
plt.show()

png

2. Tracking in First and Second Order Approximation (No Collective Effects)

In this section, we track a beam distribution generated by ASTRA, taken at the position 3.2 meters downstream from the gun cathode. That is why, we need to start the Ocelot simulation from the same longitudinal position by setting the start argument of the MagneticLattice object to the corresponding element in the beamline.

Loading the Beam Distribution

To load a particle distribution, use the function load_particle_array(FILENAME).
Ocelot currently supports the following formats:

ASTRA
CSRtrack
Ocelot (.npz)

If you already used:

from ocelot import *

you don’t need to import anything else. Otherwise, you can directly import the loader:

from ocelot.cpbd.io import load_particle_array

This function returns a ParticleArray — Ocelot’s standard object for representing particle distributions. More details can be found in the ParticleArray documentation.

#from ocelot.cpbd.io import load_particle_array

p_array_init = load_particle_array("sc_beam.npz")

Defining the Lattice and Tracking Order

To configure the beamline and select the tracking method, use the MagneticLattice class:

MagneticLattice(sequence, start=None, stop=None, method={})

Arguments:

sequence: list of lattice elements
start: first element where tracking should begin
stop: last element (optional)
method: dictionary to assign transfer maps globally or per element

Example: method = {"global": SecondTM}

Predefined transfer maps include:

TransferMap: first-order matrix
SecondTM: second-order matrix
KickTM: single-kick tracking
RungeKuttaTM: numerical integration using element.mag_field

More details are available in the MagneticLattice documentation.

# initialization of tracking method
method = {"global": SecondTM}

# for first order tracking uncomment next line
# method = {"global": TransferMap}

# we start simulation from the first quadrupole (QI.46.I1) after RF section.
# you can change stop element (and the start element, as well)
# START_73_I1 - marker before Dog leg
# START_96_I1 - marker before Bunch Compresion
lat_t = MagneticLattice(cell, start=start_sim, stop=None, method=method)

Tracking

To perform tracking, you need to define the following objects:

`Navigator`

The Navigator controls how the beam distribution (ParticleArray) is propagated through the lattice.
It defines the tracking step size (unit_step) and where physical processes (e.g. space charge, CSR) are applied.

To add collective effects, use the method:

navi.add_physics_proc(physics_proc, elem1, elem2)

physics_proc: the physics process (e.g. SpaceCharge, CSR, Wake)
elem1, elem2: the range of elements where the process will be applied

Navigator attributes:

unit_step = 1 (default): step size [m] for applying physics processes

warning

The unit_step is ignored if no physics processes are added (excluding kick-like ones such as BeamTransform). In this case, tracking is done element-by-element.

`track()` function

The track() function propagates a ParticleArray through a MagneticLattice. It also calculates beam Twiss parameters at each step (optional).

tws_list, p_array_out = track(lattice, p_array, navi)

Main arguments:

lattice: MagneticLattice object
p_array: input ParticleArray
navi: Navigator instance

Returns:

tws_list: list of Twiss objects (empty if calc_tws=False)
p_array_out: final ParticleArray after tracking

navi = Navigator(lat_t)
p_array = deepcopy(p_array_init)
start = time.time()
tws_track, p_array = track(lat_t, p_array, navi)
print("\n time exec:", time.time() - start, "sec")

    z = 93.40410100084 / 93.40410100084006. Applied: d:
     time exec: 11.96444821357727 sec

# you can change top_plot argument, for example top_plot=["alpha_x", "alpha_y"]

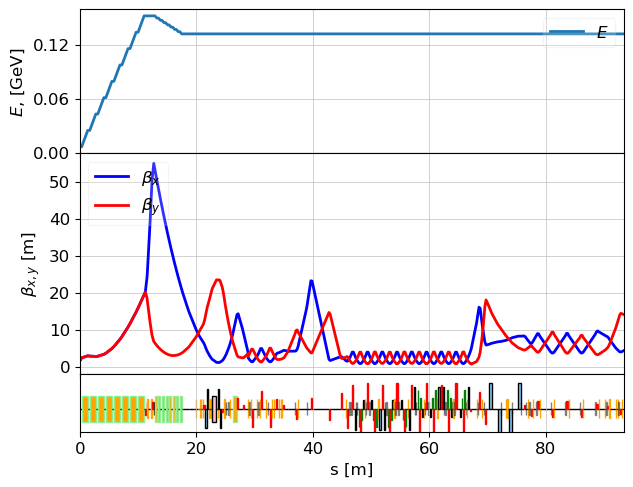

plot_opt_func(lat_t, tws_track, top_plot=["E"], fig_name=0, legend=False)
plt.show()

png

Tracking with Beam Matching

To match the beam to the design optics, you can apply an artificial transformation using BeamTransform physics process:

The BeamTransform process transform the particle distribution to match the specified Twiss parameters.

tw = Twiss()
tw.beta_x = 2.36088
tw.beta_y = 2.824
tw.alpha_x = 1.2206
tw.alpha_y = -1.35329

bt = BeamTransform(tws=tw)

navi = Navigator(lat_t)

navi.unit_step = 1 # ignored in that case, tracking will performs element by element.
                   # - there is no PhysicsProc along the lattice,
                   # BeamTransform is aplied only once

navi.add_physics_proc(bt, OTRC_55_I1, OTRC_55_I1)
p_array = deepcopy(p_array_init)
start = time.time()
tws_track, p_array = track(lat_t, p_array, navi)
print("\n time exec:", time.time() - start, "sec")
plot_opt_func(lat_t, tws_track, top_plot=["E"], fig_name=0, legend=False)
plt.show()

    z = 93.40410100084 / 93.40410100084006. Applied: d:  mTransform
     time exec: 11.477344989776611 sec

png

New in version 25.06

In the dispersion section, the transverse beam sizes (in the plane of dispersion) may be calculated incorrectly by default.
To correct this, set the argument twiss_disp_correction=True when calling the track function:

tws_track, p_array = track(lat_t, p_array, navi, twiss_disp_correction=True)

see more in Documentation about track.

tw = Twiss()
tw.beta_x = 2.36088
tw.beta_y = 2.824
tw.alpha_x = 1.2206
tw.alpha_y = -1.35329

bt = BeamTransform(tws=tw)

navi = Navigator(lat_t)

navi.unit_step = 1 # ignored in that case, tracking will performs element by element.
                   # - there is no PhysicsProc along the lattice,
                   # BeamTransform is aplied only once

navi.add_physics_proc(bt, OTRC_55_I1, OTRC_55_I1)
p_array = deepcopy(p_array_init)
start = time.time()
tws_track, p_array = track(lat_t, p_array, navi, twiss_disp_correction=True)
print("\n time exec:", time.time() - start, "sec")
plot_opt_func(lat_t, tws_track, top_plot=["E"], fig_name=0, legend=False)
plt.show()

png

note

The track() function returns a list of Twiss objects (tws_track) and the final ParticleArray (p_array).
The Twiss objects contain key beam properties such as size, position, emittance, and second moments at each step along the lattice.

You can extract common beam parameters like this:

Beam trajectory (center of mass):

x = [tw.x for tw in tws_track]

Or beam size::

sigma_x = np.sqrt([tw.xx for tw in tws_track])

of bunch length:

sigma_tau = np.sqrt([tw.tautau for tw in tws_track])

More about beam parameter calculations can be found in the get_envelope() function.

Example

sigma_x = np.sqrt([tw.xx for tw in tws_track])
s = [tw.s for tw in tws_track]

plt.plot(s, sigma_x)
plt.xlabel("s [m]")
plt.ylabel(r"$\sigma_x$, [m]")
plt.show()

png

Beam distribution

# the beam head is on left side
show_e_beam(p_array, figsize=(8,6))

png

Explicit usage of matplotlib functions

Current profile

bins_start, hist_start = get_current(p_array, num_bins=200)

plt.figure(4)
plt.title("current: end")
plt.plot(bins_start*1000, hist_start)
plt.xlabel("s, mm")
plt.ylabel("I, A")
plt.grid(True)
plt.show()

png

tau = np.array([p.tau for p in p_array])
dp = np.array([p.p for p in p_array])
x = np.array([p.x for p in p_array])
y = np.array([p.y for p in p_array])

ax1 = plt.subplot(311)
# inverse head and teil. The beam head is right side
ax1.plot(-tau*1000, x*1000, 'r.')
plt.setp(ax1.get_xticklabels(), visible=False)
plt.ylabel("x, mm")
plt.grid(True)

ax2 = plt.subplot(312, sharex=ax1)
ax2.plot(-tau*1000, y*1000, 'r.')
plt.setp(ax2.get_xticklabels(), visible=False)
plt.ylabel("y, mm")
plt.grid(True)

ax3 = plt.subplot(313, sharex=ax1)
ax3.plot(-tau*1000, dp, 'r.')
plt.ylabel("dE/E")
plt.xlabel("s, mm")
plt.grid(True)
plt.show()

png
